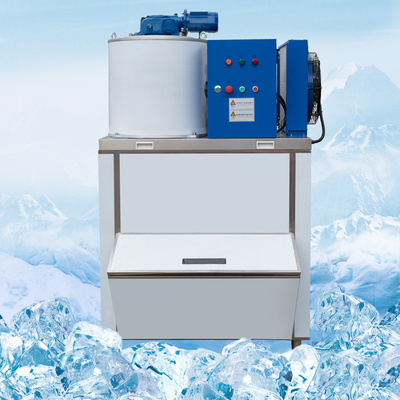

500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker

I'm Online Chat Now

500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker

500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker
500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker

Large Image :  500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker

Product Details:
Place of Origin: China
Brand Name: HIEGO
Certification: CE
Model Number: AH-05KA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2750-2800
Packaging Details: Cartoon
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 per month

500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker

Description
Name: 500kg/24H Ice Flake Machine Voltage: 220V/50HZ(can Customized)
Refrigerant: R404a Compressor: Imported Compressor
Cooling Way: Air Cooling Type: Full-Automatic
Ice Storage Capacity: 300Kg Material: Stainless Steel
Ice Type: Flake Ice Warranty Of Core Components: 1 Year
High Light:

500kg/24H commercial flake ice maker

,

commercial flake ice maker full automatic

,

R404A ice shaver snow cone maker

                  500kg/24H Commercial Flake Ice Machine Full-Automatic Ice Flake Machine

500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 0The surface area of flake-ice is quite large and covers the product properly. Also being thin, they do not damage the delicate fish skin. The temperatures of the flakers are almost -4° to -5°C. With these excellent characteristics, flake ice is always used in the processing industries. It plays an important part in sea food industries which is one of major users of flake ice. It is mandatory that any seafood industries should have a flake ice unit based on the production of the sea food in the ratio of 1: 2. Flake ice is used in Dye making. It also plays an important role in concreting. It is important to keep the concrete mix at low temperature to yield superior concrete and to avoid any cracks in concreting. Smaller ranges of flake ice units are made suitable for sea water and can be supplied to Deep sea trawlers & small units within ranges of 1 to 2 tons/24 hrs. Ice flakes are also used in supermarkets. Our Flake ice units with capacity ranging from 1 ton/24 hours to 100 tons/24 hours. Industrial Refrigeration designs & erects refrigeration system in ammonia or Freon 404A incorporating the flake ice generator.



Features

  • Scientific design and many years of engineering experience
  • Safety and sanitation
  • High reliability and low breakdown rate
  • High efficiency and energy saving
  • Simple maintenance and convenient operation
  • Great adaptability
  • Outstanding electric control system

Flake Ice advantages

  • Directly formed at low temperatures. Ice flakes are as cold as -8°C.
  • Once formed, Ice flakes are dry, clean, beautiful in shape. Sanitary and convenient.
  • Relatively big contact area and good mobility can ensure their full contact with refrigerated objects to realize good preservation effect.
  • Without any acute edges and damage concerns. Ice flakes cannot damage the surfaces of refrigerated objects but are extremely suitable for storage and delivery.

Application Fields

  • Fishery and aquatic food processing
  • Medium and large chain supermarket
  • Mine temperature reduction
  • Food processing
  • Preservation and cooling field application
  • Skiing & other sports
  • Medical facilities
  • Concrete cooling project.
  • Dye's chemical industry.
Model AH-05KA
Capacity 500kg/24h
Cooling capacity 3.2kw
Evaporating temp. -20℃
Condensing temp. 40℃
Standard water temperature 20℃
Power install 2.369KW
Condenser fan 0.18KW
Compressor 2KW
Reduction gear 0.18KW
Water pump 0.09KW
Power supply 220V/50Hz/1P
Water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice temp. -5℃
Water consumption 0.023 M3/h
Water pipe 1/2’
Machine Net Weight 280Kg
Machine size 1280*800*800mm
Ice bin Dimension(mm) 1280*1120*1050mm



Product Details

500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 1500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 2500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 3500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 4500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 5500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 6500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 7500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 8500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 9500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 10500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 11

500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 12

Package And Company



500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 13500kg/24H Commercial Flake Ice Maker Full Automatic R404A Ice Shaver Snow Cone Maker 14



FAQ



Q1: What is your main products?
A:We are mainly product include commercial ice cube maker machine,ice cream machine,slush machine,juice dispenser,cake display ETC.

Q2: Can you send the machine to my address?
A:Yes, we can shipping the machine to your port by sea, Express,Road.



Q3. What's the Payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4: What is your terms of delivery?
A:EXW, FOB, CFR, CIF, DDU.

Q5: How about your delivery time?
A: Generally, it will take 15 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6: Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.



Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
