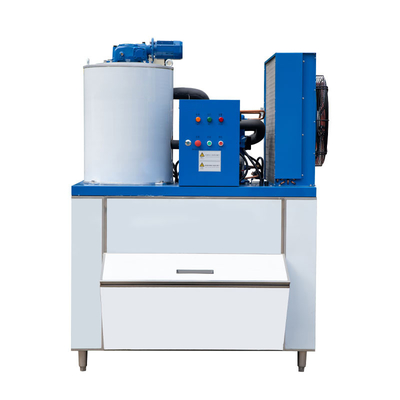

R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water

I'm Online Chat Now

R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water

R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water
R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water

Large Image :  R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water

Product Details:
Place of Origin: China
Brand Name: HIEGO
Certification: CE
Model Number: AH-10KA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 2750-2800
Packaging Details: Cartoon
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 per month

R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water

Description
Name: 1000kg/24H Ice Flake Machine Voltage: 220V/50HZ(can Customized)
Refrigerant: R404a Compressor: Imported Compressor
Cooling Way: Air Cooling Type: Full-Automatic
Ice Storage Capacity: 300Kg Material: Stainless Steel
Ice Type: Flake Ice Warranty Of Core Components: 1 Year
High Light:

R404A modular ice flaker

,

commercial snow ice machine fresh Water

,

commercial snow ice machine Salt Water



                   R404A Flake Ice Machine 1.0T/24h Fresh Water /Salt Water

R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 0The surface area of flake-ice is quite large and covers the product properly. Also being thin, they do not damage the delicate fish skin. The temperatures of the flakers are almost -4° to -5°C. With these excellent characteristics, flake ice is always used in the processing industries. It plays an important part in sea food industries which is one of major users of flake ice. It is mandatory that any seafood industries should have a flake ice unit based on the production of the sea food in the ratio of 1: 2. Flake ice is used in Dye making. It also plays an important role in concreting. It is important to keep the concrete mix at low temperature to yield superior concrete and to avoid any cracks in concreting. Smaller ranges of flake ice units are made suitable for sea water and can be supplied to Deep sea trawlers & small units within ranges of 1 to 2 tons/24 hrs. Ice flakes are also used in supermarkets. Our Flake ice units with capacity ranging from 1 ton/24 hours to 100 tons/24 hours. Industrial Refrigeration designs & erects refrigeration system in ammonia or Freon 404A incorporating the flake ice generator.



Features

  • Scientific design and many years of engineering experience
  • Safety and sanitation
  • High reliability and low breakdown rate
  • High efficiency and energy saving
  • Simple maintenance and convenient operation
  • Great adaptability
  • Outstanding electric control system

Flake Ice advantages

  • Directly formed at low temperatures. Ice flakes are as cold as -8°C.
  • Once formed, Ice flakes are dry, clean, beautiful in shape. Sanitary and convenient.
  • Relatively big contact area and good mobility can ensure their full contact with refrigerated objects to realize good preservation effect.
  • Without any acute edges and damage concerns. Ice flakes cannot damage the surfaces of refrigerated objects but are extremely suitable for storage and delivery.



Model AH-10KA
Daily Output 1000kg/24h
Cooling Capacity(KW) 6.5
Evaporating temp. -20℃
Condensing temp. 40℃
Standard water temperature 20℃
General Power(KW) 4.57
Compressor Input(KW) 3.8
Reducer Power(KW) 0.18
Pump Input(KW) 0.09
Condenser Input(LW) 0.5
Power Supply 3P/380V/50Hz
Water pressure 0.1Mp-0.5Mpa
Refrigerant R404a
Wate Inlet/drain pipe 1/2"
Weight(KG) 450KG
Dimension(mm) 1280*800*900
Ice bin Dimension(mm) 1280*1120*1050mm



Application Fields

  • Fishery and aquatic food processing
  • Medium and large chain supermarket
  • Mine temperature reduction
  • Food processing
  • Preservation and cooling field application
  • Skiing & other sports
  • Medical facilities
  • Concrete cooling project.
  • Dye's chemical industry.



Product Details

R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 1



R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 2





R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 3



R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 4R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 5R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 6R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 7R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 8R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 9R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 10R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 11R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 12

R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 13

Package And Company



R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 14R404A Modular Ice Flaker 1.0T/24h Commercial Snow Ice Machine Fresh Salt Water 15
